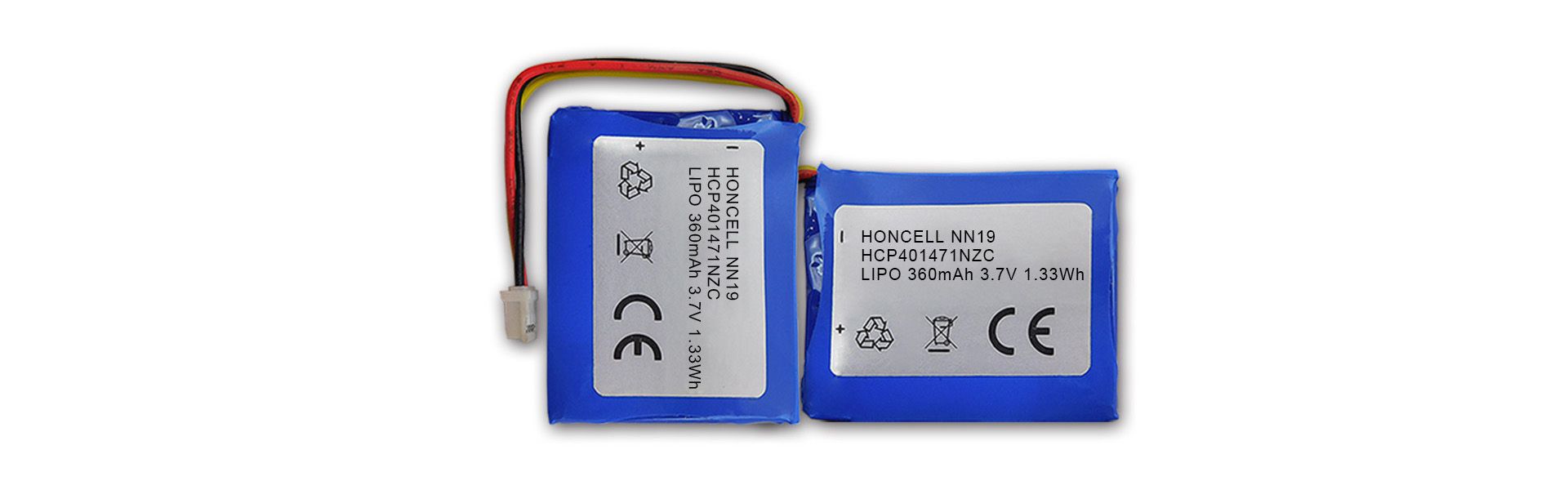

Small Capacity Lipo Pouch Cells 3.7V, 15-1,000mAh
Honcell small capacity range (3.7V, 15-1,000mAh) Li-polymer cells are used to power portable devices and equipments like wearables and or provide back up power.
Cells can be combined and assembled in series to increase voltage or parallel to increase capacity by using several identical cells.
Thermistors or thermal fuses and gas gauging can be added if necessary, but Printed Circuit Module (PCM) is highly recommended for safety protection.
Connection can be tabs soldering directly, stripped lead wires and or with a specified genuine connector.
Model Selection Guide
1: Width (W) and length (L) are fixed for each cell size but thickness (T) is variable, which can increase or decrease cell capacity for the same fixed width and length Lipo cell.
2: Due to site space limitations, if you don't see any proper width and length here below or not even a closer one, please contact us.
3: Adding a PCM on the cell will increase approx. 1.5-2.0mm to the overall length, and 0.5mm to the thickness after assembly.
4: The following parameters are theoretical data, intended for reference only. Please contact our sales staff for details.
| Model NO. | Voltage | Capacity | Cell Dimension Max.(mm) | Impedance | Tab Width(mm) | Tab Distance(mm) | Weight | Remark | ||
|---|---|---|---|---|---|---|---|---|---|---|
| V | mAh | Thickness | Width | Length | mΩ < | g | ||||
| HCP300812 | 3.7 | 13 | 3.0 | 8.5 | 12.5 | 1200 | 1.5 | 5 | 0.5 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP351013 | 3.7 | 15 | 3.5 | 9.8 | 13.5 | 1200 | 2.0 | 4.0 | 0.72 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP371114 | 3.7 | 21 | 3.6 | 10.9 | 13.8 | 1400 | 2.0 | 5.0 | 0.84 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP301215 | 3.7 | 25 | 3.2 | 12.5 | 15.5 | 700 | 2.0 | 4.0 | 0.97 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP251020 | 3.7 | 25 | 2.7 | 10.8 | 20.8 | 700 | 2.0 | 4.5 | 0.9 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP231715 | 3.7 | 25 | 2.3 | 17.5 | 15.5 | 700 | 2.0 | 10.5 | 0.9 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP251515 | 3.7 | 28 | 2.5 | 15.5 | 15.5 | 850 | 2.0 | 9.3 | 0.9 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP301020 | 3.7 | 30 | 3.2 | 11.0 | 20.8 | 600 | 2.0 | 4.5 | 1.1 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP401215 | 3.7 | 35 | 4.0 | 12.5 | 15.5 | 600 | 2.0 | 5.0 | 1.2 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP381018 | 3.7 | 35 | 4.0 | 10.8 | 18.5 | 700 | 2.0 | 4.0 | 1.2 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP250834 | 3.7 | 40 | 2.7 | 8.6 | 34.5 | 550 | 2.0 | 4.0 | 1.26 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP340923 | 3.7 | 40 | 3.4 | 9.3 | 23.0 | 500 | 2.0 | 4.5 | 1.13 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP301317 | 3.7 | 40 | 3.5 | 12.5 | 16.0 | 500 | 2.0 | 5.0 | 1.09 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP351219 | 3.7 | 45 | 3.6 | 12.5 | 19.0 | 470 | 2.0 | 4.5 | 1.3 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP182030 | 3.7 | 45 | 1.8 | 20.5 | 30.5 | 450 | 2.0 | 9.0 | 1.0 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP381120 | 3.7 | 45 | 3.8 | 11.5 | 20.5 | 420 | 3.0 | 5 | 1.2 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP401515 | 3.7 | 48 | 4.2 | 15.5 | 15.5 | 480 | 2.0 | 6.0 | 1.5 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP451416 | 3.7 | 50 | 4.5 | 14.5 | 16.0 | 400 | 3.0 | 5.0 | 1.63 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP321024 | 3.7 | 50 | 3.2 | 10.5 | 24.5 | 420 | 2.0 | 6.3 | 1.2 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP401120 | 3.7 | 55 | 4.1 | 11.5 | 20.5 | 350 | 2.0 | 5.0 | 1.4 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP401716 | 3.7 | 60 | 4.0 | 17.0 | 16.0 | 360 | 2.0 | 9.0 | 1.70 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP501218 | 3.7 | 60 | 5.0 | 11.8 | 18.0 | 420 | 2.0 | 5 | 1.6 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP401220 | 3.7 | 65 | 4.2 | 12.3 | 21.0 | 350 | 2.0 | 5.0 | 1.6 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP501021 | 3.7 | 70 | 5.0 | 10.5 | 21.5 | 400 | 2.0 | 6.3 | 1.7 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP661515 | 3.7 | 85 | 6.6 | 15.0 | 15.5 | 390 | 3.0 | 7.0 | 2.39 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP501220 | 3.7 | 85 | 5.0 | 12.5 | 20.5 | 300 | 2.0 | 5.0 | 1.90 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP351624 | 3.7 | 90 | 3.5 | 16.5 | 24.5 | 300 | 2.0 | 6.5 | 2.21 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP381920 | 3.7 | 90 | 3.8 | 19.5 | 20.0 | 300 | 2.0 | 8.0 | 2.31 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP362018 | 3.7 | 90 | 3.6 | 19.8 | 18.5 | 300 | 2.0 | 9.5 | 2.06 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP381525 | 3.7 | 90 | 3.8 | 15.5 | 25.5 | 240 | 2.0 | 6.5 | 2.02 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP301135 | 3.7 | 90 | 3.0 | 11.5 | 35.5 | 260 | 2.0 | 6.9 | 1.8 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP511419 | 3.7 | 90 | 5.1 | 14.5 | 19.5 | 260 | 2.0 | 8.7 | 2.2 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP252525 | 3.7 | 95 | 2.5 | 25.5 | 25.5 | 280 | 3.0 | 15.0 | 2.54 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP302222 | 3.7 | 100 | 3.0 | 22.5 | 22.5 | 260 | 2.0 | 8.0 | 2.37 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP451225 | 3.7 | 100 | 4.6 | 12.5 | 25.5 | 270 | 2.0 | 5.3 | 2.20 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP751717 | 3.7 | 110 | 7.5 | 17.5 | 17.5 | 270 | 2.0 | 9.0 | 2.2 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP431035 | 3.7 | 110 | 4.3 | 10.5 | 35.5 | 270 | 2.0 | 4.5 | 2.4 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP481624 | 3.7 | 120 | 4.8 | 16.5 | 24.5 | 200 | 2.0 | 5.0 | 2.62 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP401135 | 3.7 | 120 | 4.0 | 12.0 | 35.5 | 220 | 2.0 | 5.3 | 2.6 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP302323 | 3.7 | 130 | 3.0 | 23.5 | 23.5 | 200 | 3.0 | 13.5 | 2.5 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP701522 | 3.7 | 130 | 7.0 | 15.5 | 22.5 | 200 | 2.0 | 5.0 | 2.5 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP601818 | 3.7 | 135 | 6.0 | 18.0 | 18.5 | 180 | 3.0 | 8.0 | 3.12 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP402025 | 3.7 | 140 | 3.9 | 20.0 | 25.0 | 70 | 2.0 | 9.5 | 2.9 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP501232 | 3.7 | 145 | 5.0 | 12.5 | 32.5 | 220 | 4.0 | 5.5 | 3.50 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP491132 | 3.7 | 145 | 4.9 | 11.8 | 32.0 | 200 | 2.0 | 5.5 | 2.8 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP232634 | 3.7 | 150 | 2.3 | 28.5 | 34.5 | 260 | 2.0 | 17.0 | 3.53 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP442022 | 3.7 | 150 | 4.4 | 20.5 | 22.5 | 180 | 3.0 | 9.5 | 3.04 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP621919 | 3.7 | 150 | 6.2 | 19.5 | 19.5 | 150 | 2.0 | 7 | 3.1 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP253035 | 3.7 | 150 | 2.5 | 30.5 | 35.5 | 200 | 2.0 | 17 | 4.0 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP283035 | 3.7 | 150 | 2.8 | 30.5 | 36 | 200 | 2.0 | 17.0 | 4.0 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP252530 | 3.7 | 150 | 2.7 | 25.5 | 30.5 | 170 | 3.0 | 15.0 | 3.1 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP501235 | 3.7 | 150 | 5.0 | 12.5 | 35.0 | 200 | 2.0 | 5.3 | 3.3 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP422025 | 3.7 | 150 | 4.2 | 20.5 | 25.5 | 170 | 3.0 | 9.0 | 3.3 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP452023 | 3.7 | 150 | 4.5 | 20.5 | 23.5 | 200 | 2.0 | 9.5 | 3.3 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP402025 | 3.7 | 155 | 4.0 | 20.5 | 25.5 | 200 | 3.0 | 9.5 | 3.00 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP801223 | 3.7 | 155 | 8.0 | 12.5 | 23.5 | 170 | 2.0 | 7.5 | 3.5 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP262332 | 3.7 | 155 | 2.6 | 23.5 | 32.5 | 200 | 2.0 | 14.1 | 3.0 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP371058 | 3.7 | 160 | 3.7 | 10.8 | 58.5 | 250 | 3.0 | 4.5 | 3.65 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP272332 | 3.7 | 165 | 2.7 | 23.5 | 32.5 | 180 | 3.0 | 14.0 | 3.09 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP801818 | 3.7 | 170 | 8.2 | 18.0 | 19.0 | 160 | 3.0 | 8 | 4.2 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP263128 | 3.7 | 180 | 2.8 | 31.5 | 28.5 | 200 | 2.0 | 22.0 | 3.92 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP1524122 | 3.7 | 180 | 1.3 | 23.8 | 120.0 | 150 | 3.0 | 10.5 | 6.01 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP402030 | 3.7 | 180 | 4.0 | 20.5 | 30.5 | 130 | 3.0 | 9.0 | 3.60 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP751723 | 3.7 | 180 | 7.5 | 17.0 | 23.0 | 80 | 3.0 | 7.0 | 4.4 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP292332 | 3.7 | 180 | 2.9 | 23.5 | 32.5 | 160 | 2.0 | 14.1 | 3.3 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP352328 | 3.7 | 180 | 3.5 | 23.5 | 28.5 | 150 | 2.0 | 13.5 | 4.6 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP401440 | 3.7 | 190 | 4.0 | 14.5 | 40.5 | 160 | 3.0 | 6.0 | 3.30 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP382030 | 3.7 | 190 | 3.8 | 20.5 | 30.5 | 150 | 3.0 | 9.0 | 3.53 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP451245 | 3.7 | 200 | 4.7 | 12.5 | 45.5 | 140 | 3.0 | 5.0 | 4.0 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP481435 | 3.7 | 200 | 4.8 | 14.5 | 35.5 | 160 | 2.0 | 8.7 | 3.7 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP282730 | 3.7 | 200 | 2.8 | 27.5 | 30.5 | 160 | 2.0 | 16.5 | 3.5 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP402525 | 3.7 | 200 | 4.0 | 25.5 | 25.5 | 150 | 2.0 | 9.0 | 3.9 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP302533 | 3.7 | 210 | 3.0 | 25.5 | 33.5 | 160 | 2.0 | 12.0 | 3.8 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP203040 | 3.7 | 210 | 2.5 | 36.0 | 40.5 | 100 | 3.0 | 20.0 | 5.5 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP502028 | 3.7 | 220 | 5.2 | 20.5 | 29.0 | 130 | 3.0 | 7.0 | 4.64 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP701429 | 3.7 | 220 | 7.3 | 14.5 | 29.8 | 150 | 3.0 | 7.0 | 4.7 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP402035 | 3.7 | 240 | 4.2 | 20.5 | 35.5 | 140 | 3.0 | 9.0 | 4.6 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP602025 | 3.7 | 240 | 6.2 | 20.5 | 25.5 | 130 | 3.0 | 7.5 | 4.9 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP431165 | 3.7 | 250 | 4.5 | 11.2 | 65.5 | 120 | 3.0 | 20.0 | 5.15 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP402827 | 3.7 | 250 | 3.8 | 28.3 | 27.0 | 120 | 2.0 | 17.0 | 4.59 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP551730 | 3.7 | 250 | 5.7 | 17.5 | 30.5 | 150 | 3.0 | 5.0 | 4.56 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP252844 | 3.7 | 250 | 2.7 | 28.5 | 44.5 | 150 | 3.0 | 19.0 | 5.04 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP502030 | 3.7 | 250 | 5.0 | 20.5 | 30.5 | 100 | 3.0 | 9.0 | 4.50 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP602323 | 3.7 | 250 | 6.0 | 23.5 | 23.5 | 120 | 2.0 | 12.0 | 5.50 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP552027 | 3.7 | 250 | 5.5 | 20.5 | 27.5 | 140 | 2.0 | 9.0 | 4.7 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP722022 | 3.7 | 250 | 7.2 | 20.5 | 22.5 | 120 | 2.0 | 6 | 4.9 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP491735 | 3.7 | 260 | 4.9 | 17.5 | 35.5 | 150 | 3.0 | 7.0 | 4.45 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP722023 | 3.7 | 265 | 7.2 | 20.5 | 23.5 | 140 | 2.0 | 9 | 5.0 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP382730 | 3.7 | 270 | 3.8 | 27.5 | 30.5 | 150 | 3.0 | 17.0 | 4.70 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP441547 | 3.7 | 270 | 4.4 | 15.5 | 47.5 | 140 | 3.0 | 6.0 | 4.81 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP101821 | 3.7 | 270 | 10.0 | 18.5 | 21.5 | 150 | 2.0 | 11.1 | 6.0 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP101722 | 3.7 | 270 | 10.0 | 17.5 | 22.5 | 130 | 2.0 | 7 | 5.1 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP702025 | 3.7 | 280 | 7.2 | 20.5 | 25.5 | 140 | 3.0 | 7.0 | 5.65 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP552030 | 3.7 | 280 | 5.5 | 20.5 | 30.5 | 120 | 3.0 | 7.5 | 5.2 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP303035 | 3.7 | 280 | 3.2 | 30.5 | 35.5 | 120 | 3.0 | 17.0 | 5.2 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP432730 | 3.7 | 280 | 4.3 | 27.5 | 30.5 | 130 | 2.0 | 16.5 | 5.4 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP701245 | 3.7 | 300 | 6.6 | 12.5 | 45.5 | 130 | 3.0 | 5.0 | 5.86 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP602030 | 3.7 | 300 | 6.0 | 20.5 | 30.5 | 90 | 3.0 | 7.5 | 5.40 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP582030 | 3.7 | 300 | 5.8 | 20.3 | 30.5 | 120 | 3.0 | 8.5 | 5.4 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP552626 | 3.7 | 300 | 5.5 | 26.5 | 26.5 | 130 | 2.0 | 15.9 | 7.7 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP502530 | 3.7 | 300 | 5.0 | 25.5 | 30.5 | 100 | 2.0 | 12.0 | 5.8 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP302938 | 3.7 | 300 | 3.0 | 29.5 | 38.5 | 130 | 3.0 | 17 | 5.7 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP622425 | 3.7 | 320 | 6.1 | 24.5 | 26.7 | 110 | 3.0 | 12.0 | 6.23 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP452625 | 3.7 | 320 | 4.5 | 26.5 | 25.0 | 110 | 3.0 | 14.3 | 4.70 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP702525 | 3.7 | 330 | 7.0 | 25.5 | 25.5 | 130 | 2.0 | 15.3 | 6.8 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP552133 | 3.7 | 330 | 5.5 | 21.5 | 34.0 | 100 | 2.0 | 9 | 6.2 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP552724 | 3.7 | 340 | 5.5 | 27.0 | 24.0 | 100 | 3.0 | 14.2 | 5.56 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP752323 | 3.7 | 340 | 7.5 | 23.5 | 23.5 | 140 | 2.0 | 13.5 | 6.20 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP401471 | 3.7 | 360 | 4.0 | 14.5 | 71.5 | 120 | 2.0 | 6.5 | 6.47 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP502040 | 3.7 | 370 | 5.0 | 20.5 | 40.0 | 120 | 3.0 | 8.0 | 6.2 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP902323 | 3.7 | 380 | 9.0 | 23.5 | 24.5 | 100 | 4.0 | 8.0 | 8.08 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP452634 | 3.7 | 380 | 4.7 | 25.6 | 34.0 | 85 | 3.0 | 14.5 | 6.1 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP802030 | 3.7 | 390 | 8.2 | 20.5 | 30.8 | 140 | 3.0 | 6.5 | 7.7 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP922126 | 3.7 | 400 | 9.2 | 21.5 | 27.3 | 100 | 3.0 | 8.0 | 8.42 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP503030 | 3.7 | 400 | 5.0 | 30.5 | 30.5 | 100 | 3.0 | 17.0 | 6.98 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP352065 | 3.7 | 400 | 3.5 | 20.5 | 65.5 | 60 | 3.0 | 9.0 | 7.0 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP602428 | 3.7 | 400 | 6.0 | 24.5 | 28.5 | 180 | 2.0 | 14.7 | 6.3 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP552730 | 3.7 | 400 | 5.5 | 27.8 | 30.5 | 90 | 3.0 | 13.0 | 7.0 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP302083 | 3.7 | 420 | 3.0 | 20.5 | 83.5 | 110 | 3.0 | 10.0 | 8.01 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP502734 | 3.7 | 420 | 5.0 | 27.5 | 34.5 | 100 | 2.0 | 16.5 | 7.1 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP602040 | 3.7 | 420 | 6.0 | 20.5 | 40.5 | 70 | 3.0 | 7.5 | 7.5 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP552535 | 3.7 | 430 | 5.4 | 25.5 | 34.5 | 90 | 3.0 | 12.0 | 7.1 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP723123 | 3.7 | 430 | 7.2 | 31.5 | 23.5 | 80 | 3.0 | 20 | 8.0 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP402447 | 3.7 | 445 | 4.0 | 24.5 | 47.5 | 100 | 2.0 | 14.7 | 7.0 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP451575 | 3.7 | 450 | 4.5 | 15.4 | 75.0 | 100 | 2.0 | 6.0 | 8.11 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP342946 | 3.7 | 450 | 3.4 | 28.0 | 46.0 | 90 | 3.0 | 16.5 | 6.93 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP602533 | 3.7 | 450 | 6.0 | 25.5 | 33.5 | 80 | 3.0 | 11.0 | 7.69 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP551752 | 3.7 | 450 | 5.5 | 17.5 | 52.5 | 100 | 3.0 | 5.0 | 7.5 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP443040 | 3.7 | 450 | 4.4 | 30.5 | 40.5 | 100 | 2.0 | 18.3 | 8.2 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP302084 | 3.7 | 450 | 3.0 | 20.5 | 84.5 | 100 | 2.0 | 12.3 | 7.8 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP423040 | 3.7 | 450 | 4.4 | 30.5 | 40.5 | 75 | 3.0 | 13.5 | 8.2 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP353445 | 3.7 | 470 | 3.5 | 34.5 | 45.5 | 80 | 2.0 | 18.0 | 8.0 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP801740 | 3.7 | 470 | 8.0 | 17.2 | 40.8 | 90 | 3.0 | 7.0 | 8.4 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP283448 | 3.7 | 470 | 2.8 | 34.8 | 48.5 | 90 | 2.0 | 23.0 | 7.1 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP652533 | 3.7 | 500 | 6.7 | 25.5 | 33.5 | 80 | 3.0 | 11.0 | 8.42 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP602535 | 3.7 | 500 | 6.0 | 25.5 | 35.5 | 150 | 2.0 | 12.0 | 9.3 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP702530 | 3.7 | 500 | 7.2 | 25.5 | 30.5 | 100 | 3.0 | 11.0 | 8.33 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP603030 | 3.7 | 500 | 6.0 | 30.5 | 30.8 | 80 | 3.0 | 16.0 | 8.32 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP304980 | 3.7 | 500 | 3.0 | 49.5 | 80.5 | 120 | 2.0 | 29.7 | 17.9 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP652533 | 3.7 | 500 | 6.7 | 25.0 | 33.5 | 80 | 3.0 | 11.0 | 8.4 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP353048 | 3.7 | 500 | 3.7 | 30.5 | 48.5 | 70 | 3.0 | 18.0 | 8.2 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP443038 | 3.7 | 500 | 4.4 | 30.5 | 38.5 | 80 | 2.0 | 18.3 | 7.8 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP323450 | 3.7 | 500 | 3.2 | 34.0 | 50.0 | 60 | 3.0 | 21.0 | 3.2 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP303450 | 3.7 | 500 | 3.2 | 34.5 | 50.5 | 100 | 3.0 | 23 | 9.6 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP551656 | 3.7 | 500 | 5.6 | 16.5 | 56.5 | 100 | 2.0 | 7.5 | 9.2 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP681362 | 3.7 | 530 | 6.8 | 13.5 | 62.0 | 120 | 3.0 | 4.0 | 8.88 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP753027 | 3.7 | 550 | 7.5 | 30.0 | 27.0 | 70 | 3.0 | 15.0 | 9.48 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP353046 | 3.7 | 550 | 3.5 | 30.5 | 46.5 | 55 | 3.0 | 19.0 | 7.25 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP702437 | 3.7 | 550 | 7.0 | 24.5 | 37.5 | 100 | 2.0 | 13.0 | 9.1 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP601665 | 3.7 | 560 | 6.0 | 16.5 | 65.5 | 100 | 4.0 | 6.5 | 12.00 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP502247 | 3.7 | 560 | 5.0 | 22.5 | 47.5 | 80 | 3.0 | 9 | 10.2 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP802828 | 3.7 | 570 | 8.0 | 28.5 | 28.5 | 100 | 2.0 | 17.1 | 9.7 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP502742 | 3.7 | 580 | 5.0 | 27.5 | 42.5 | 100 | 2.0 | 16.5 | 8.8 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP723030 | 3.7 | 580 | 7.2 | 30.5 | 30.5 | 100 | 2.0 | 16.0 | 10.0 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP102327 | 3.7 | 580 | 10.0 | 23.5 | 27.5 | 2.0 | 14.1 | 9.7 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC | |
| HCP683030 | 3.7 | 590 | 6.8 | 30.5 | 30.5 | 80 | 3.0 | 16.0 | 9.5 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP433737 | 3.7 | 600 | 4.4 | 38.0 | 37.5 | 100 | 3.0 | 25.0 | 9.78 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP722238 | 3.7 | 600 | 7.2 | 22.5 | 38.8 | 80 | 3.0 | 8.5 | 9.43 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP503040 | 3.7 | 600 | 5.0 | 30.5 | 40.5 | 80 | 3.0 | 17.2 | 11.8 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP752238 | 3.7 | 600 | 7.7 | 22.5 | 38.5 | 70 | 3.0 | 7.0 | 10.0 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP623035 | 3.7 | 600 | 6.2 | 30.5 | 35.8 | 70 | 2.0 | 18.3 | 11.1 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP741362 | 3.7 | 620 | 7.4 | 12.8 | 62.0 | 60 | 2.0 | 5.0 | 11.0 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP553432 | 3.7 | 630 | 5.3 | 34.0 | 32.0 | 60 | 3.0 | 15.0 | 9.00 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP982827 | 3.7 | 630 | 9.8 | 28.5 | 27.5 | 100 | 2.0 | 17.1 | 11.5 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP602248 | 3.7 | 630 | 6.0 | 22.5 | 48.8 | 80 | 3.0 | 9.0 | 9.9 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP353943 | 3.7 | 630 | 3.5 | 39.5 | 43.5 | 100 | 3.0 | 28 | 11.5 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP692933 | 3.7 | 650 | 6.9 | 29.5 | 33.0 | 70 | 3.0 | 14.8 | 10.48 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP752240 | 3.7 | 650 | 7.5 | 22.5 | 40.5 | 280 | 3.0 | 9.0 | 10.25 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP852040 | 3.7 | 650 | 8.5 | 20.5 | 40.5 | 100 | 3.0 | 7.0 | 10.6 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP652637 | 3.7 | 650 | 6.5 | 26.5 | 38 | 110 | 3.0 | 13.5 | 9.8 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP852044 | 3.7 | 670 | 8.5 | 20.5 | 44.5 | 80 | 2 | 7.5 | 13.0 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP541780 | 3.7 | 680 | 5.4 | 17.0 | 80.0 | 70 | 3.0 | 8.0 | 11.46 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP553040 | 3.7 | 680 | 5.5 | 30.2 | 40.5 | 80 | 3.0 | 12.0 | 10.1 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP303759 | 3.7 | 700 | 3.0 | 37.5 | 59.5 | 70 | 3.0 | 26.0 | 10.0 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP403448 | 3.7 | 700 | 4.0 | 34.5 | 48.5 | 80 | 3.0 | 20.0 | 10.0 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP803030 | 3.7 | 700 | 8.0 | 30.5 | 30.5 | 100 | 2.0 | 18.3 | 11.2 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP462558 | 3.7 | 720 | 4.6 | 25.5 | 58.5 | 80 | 2.0 | 11.5 | 13.1 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP451885 | 3.7 | 730 | 4.6 | 19.0 | 85.8 | 80 | 3.0 | 7.0 | 11.70 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP503240 | 3.7 | 735 | 5.0 | 32.5 | 40.5 | 80 | 2.0 | 19.5 | 9.9 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP481695 | 3.7 | 740 | 4.9 | 16.5 | 95.5 | 80 | 3.0 | 7.0 | 12.05 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP372775 | 3.7 | 750 | 3.7 | 27.1 | 76.0 | 70 | 3.0 | 14.0 | 11.92 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP503442 | 3.7 | 750 | 5.2 | 34.5 | 42.5 | 70 | 3.0 | 20.5 | 11.4 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP103225 | 3.7 | 800 | 10.4 | 32.0 | 25.0 | 60 | 3.0 | 13.3 | 12.98 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP603040 | 3.7 | 800 | 6.0 | 30.5 | 40.5 | 65 | 3.0 | 15.0 | 10.80 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP235471 | 3.7 | 800 | 2.3 | 54.5 | 71.5 | 70 | 3.0 | 39.0 | 13.18 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP423744 | 3.7 | 800 | 4.2 | 37.5 | 44.5 | 60 | 4.0 | 18.5 | 18.00 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP562360 | 3.7 | 800 | 5.6 | 23.5 | 60.5 | 70 | 3.0 | 8.5 | 12.0 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP602365 | 3.7 | 800 | 6.0 | 23.5 | 65.5 | 65 | 2.0 | 8.5 | 9.0 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP553640 | 3.7 | 850 | 5.4 | 36.0 | 40.0 | 60 | 3.0 | 14.0 | 12.24 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP663837 | 3.7 | 850 | 6.6 | 38.5 | 37.5 | 80 | 2.0 | 20.0 | 14.3 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP334561 | 3.7 | 900 | 3.3 | 45.5 | 61.5 | 75 | 3.0 | 33.0 | 14.41 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP444837 | 3.7 | 900 | 4.4 | 48.0 | 37.0 | 55 | 3.0 | 36.0 | 12.19 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP306044 | 3.7 | 900 | 3.0 | 60.0 | 44.0 | 50 | 3.0 | 47.0 | 12.36 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP652948 | 3.7 | 900 | 6.5 | 29.5 | 48.5 | 60 | 3.0 | 14.4 | 13.57 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP902248 | 3.7 | 900 | 9.0 | 22.5 | 48.8 | 60 | 3.0 | 8.0 | 14.53 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP803040 | 3.7 | 900 | 8.0 | 30.5 | 40.5 | 65 | 3.0 | 13.9 | 14.40 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP603442 | 3.7 | 900 | 6.0 | 34.5 | 42.5 | 60 | 3.0 | 20.0 | 12.90 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP473455 | 3.7 | 900 | 4.7 | 34.5 | 55.5 | 80 | 2.0 | 20.7 | 13.5 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP354069 | 3.7 | 900 | 3.5 | 40.5 | 69.5 | 70 | 2.0 | 24.3 | 14.8 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP703040 | 3.7 | 900 | 7.0 | 30.5 | 40.5 | 65 | 2.0 | 14.0 | 13.0 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP383562 | 3.7 | 900 | 3.8 | 35.5 | 62.5 | 80 | 2.0 | 21.3 | 12.6 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP105253 | 3.7 | 900 | 10.0 | 52.5 | 53.5 | 80 | 2.0 | 31.5 | 42.1 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP1052535 | 3.7 | 900 | 10.5 | 25.5 | 35.5 | 70 | 4.0 | 7.5 | 12.7 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP623536 | 3.7 | 900 | 6.2 | 35.5 | 36.5 | 80 | 3.0 | 22 | 18.0 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP833535 | 3.7 | 950 | 8.3 | 35.0 | 35.0 | 65 | 3.0 | 18.0 | 15.86 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP543257 | 3.7 | 950 | 5.4 | 32.5 | 57.5 | 65 | 3.0 | 16.0 | 17.50 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP803040 | 3.7 | 950 | 8.0 | 30.5 | 40.5 | 60 | 3.0 | 14.0 | 17.30 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP354847 | 3.7 | 950 | 3.5 | 48.5 | 47.5 | 65 | 3.0 | 28.0 | 17.5 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP653441 | 3.7 | 950 | 6.5 | 34.5 | 41.5 | 65 | 2.0 | 20.0 | 17.4 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP323293 | 3.7 | 1000 | 3.2 | 32.0 | 93.0 | 50 | 3.0 | 19.0 | 24.38 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP534740 | 3.7 | 1000 | 5.3 | 47.8 | 40.0 | 60 | 3.0 | 34.0 | 25.94 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
| HCP295572 | 3.7 | 1570 | 2.9 | 55.5 | 72.5 | 60 | 4.0 | 33 | 22.9 | IEC62133,PSE,KC,CE,UL,UN38.3,FCC |
